3 tons crawler spider crane

Model Number : HTSC3.0

Maximum operating radius : 10m

MOQ : 1 set

Delivery Time : 5-14 work days

Hook Rising Speed : 0-8m/min(4 ropes)

Payment Terms : L/C,D/A,D/P,T/T

Model : HTSC3.0

Brand Name : Hightop

Rotation angle/speed : 0-360° (continuous)/60sec

Packaging Details : Wooden case

Price : Negotiation

Maximum above ground lift : 10.8m

Supply Ability : 100 set per month

Voltage : AC380V

Certification : CE，EPA，ISO，TUV

Boom angle/time : 0-78°/13sec

Place of Origin : China

norm : 3T

Contact Now

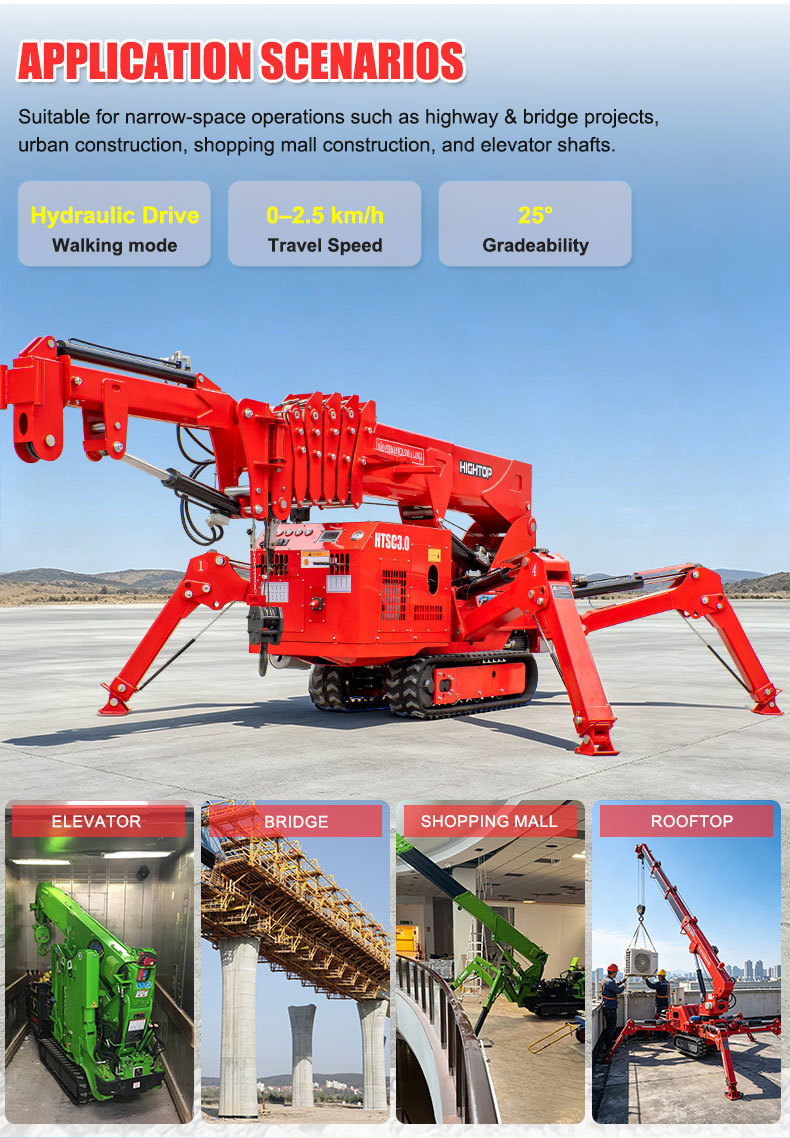

The 3-ton crawler spider crane is a miniature fully-hydraulic telescopic crawler crane. Due to its four independently extendable and foldable hydraulic legs resembling the limbs of a spider, it is named the Spider Crane. Core positioning: A specialized lifting equipment for narrow spaces, solving the lifting problems that ordinary truck cranes and large cranes cannot handle when entering indoor areas or narrow passages.

3 tons crawler spider crane basic parameters
norm		3T

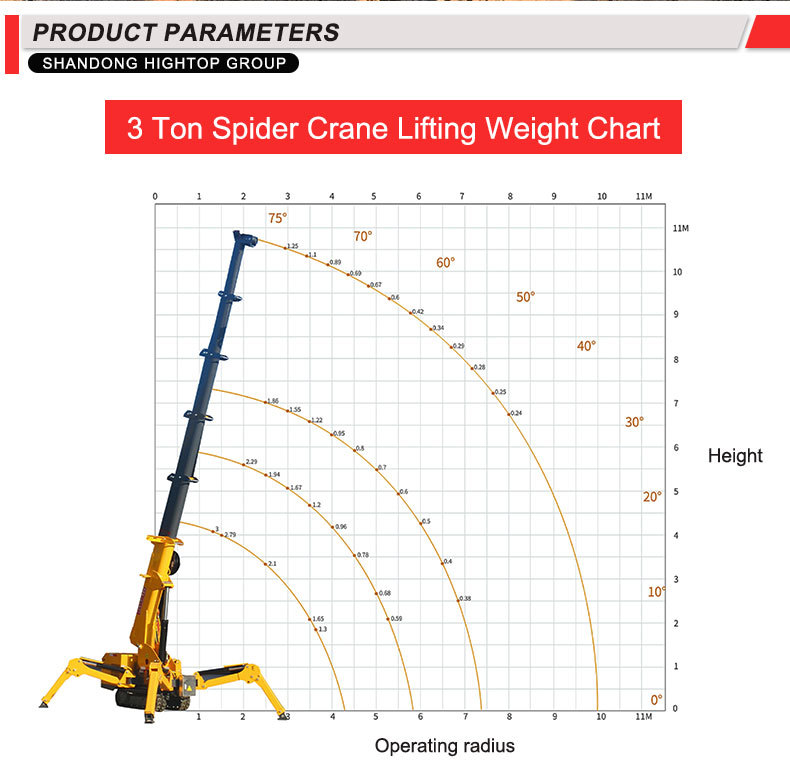

Maximum operating radius		10m
Maximum above ground lift		10.8m
winches	Hook Rising Speed	0-8m/min(4 ropes)
	Wire Rope Specifications	Φ8mm×45m

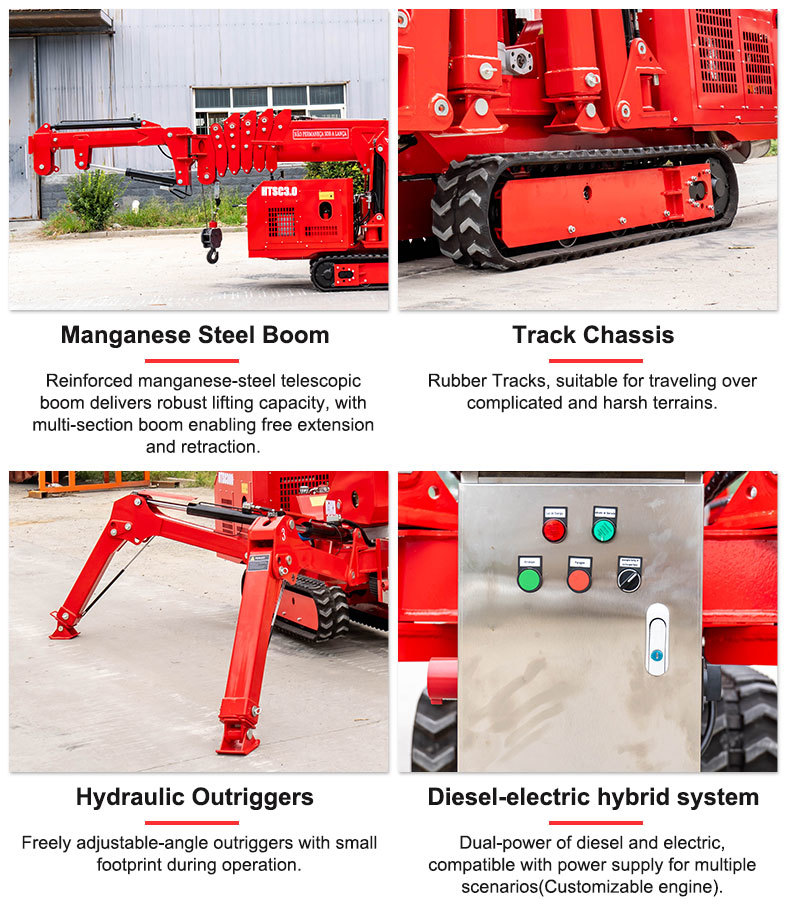

Telescopic	Boom form	2.4m x 6-section boom (customizable)
	Boom length/time	3.1m-10.8m/20sec(adjustable)
luffing device	Boom angle/time	0-78°/13sec

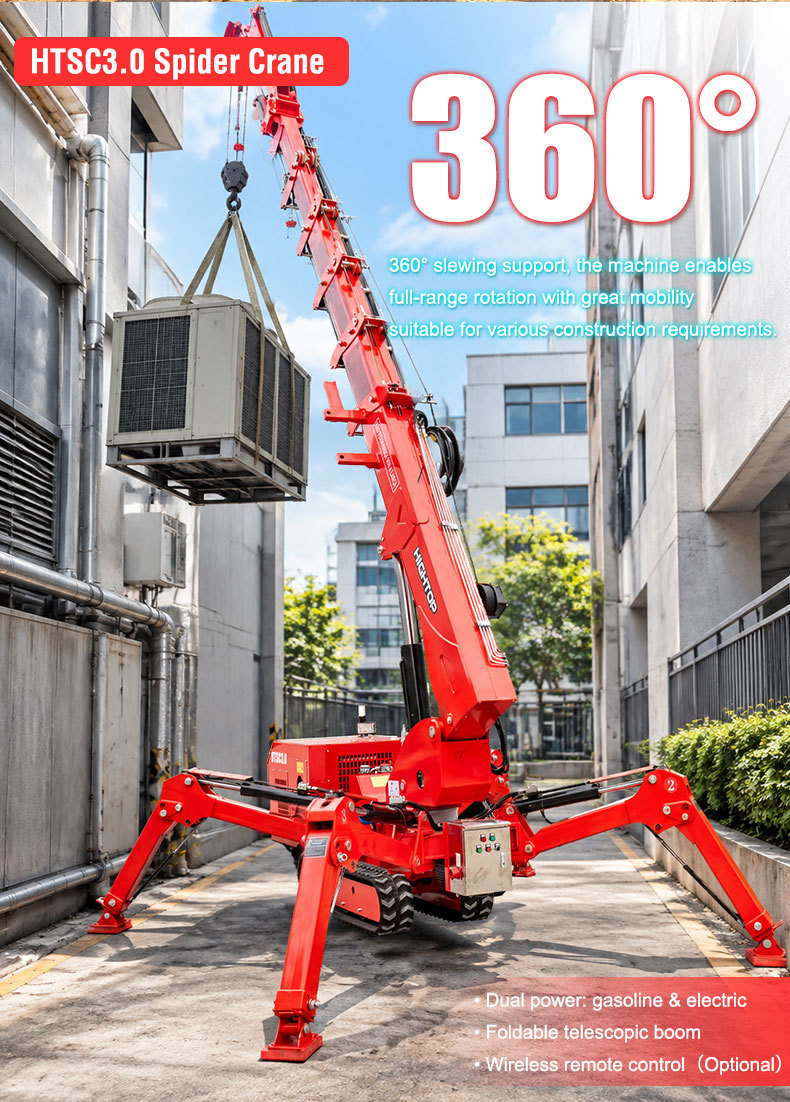

cyclotron	Rotation angle/speed	0-360° (continuous)/60sec
Outrigger	Forms of outrigger movement	Manual screw out + hydraulic support (three-section legs retractable)

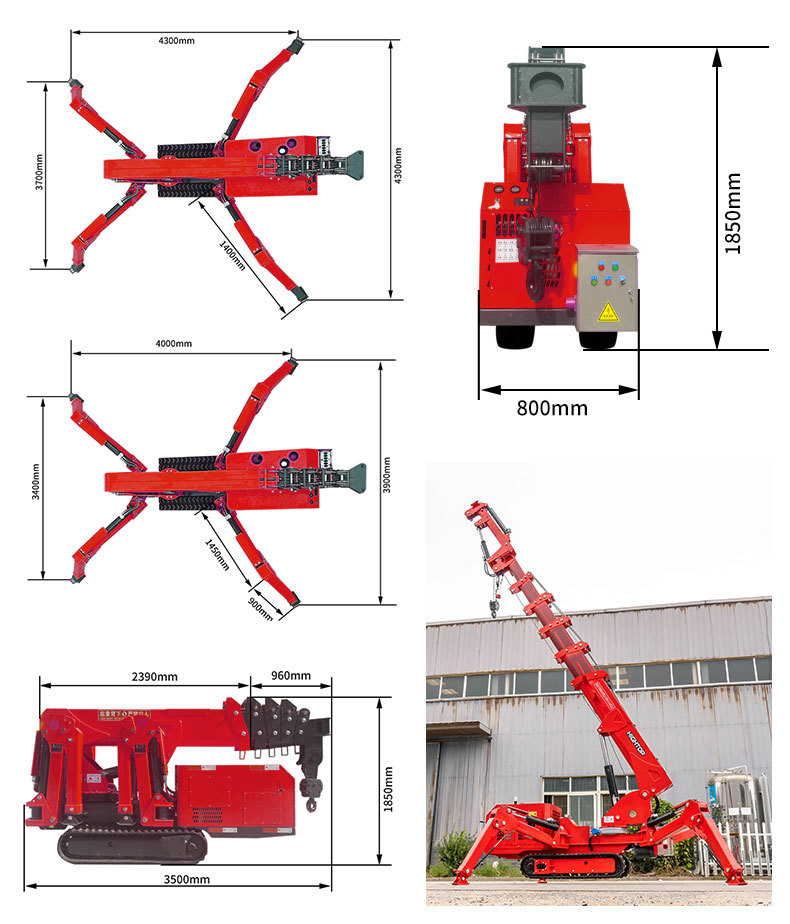

	Maximum extension amplitude (mm)	4300 (length) X3700 (rear) X4300 (front)
Running Gear	Walking mode	hydraulic drive
	Walking speed	0-2.5km/h
	Gradeability	25°(36%)
	Track	220 (width)72 (pitch)50(section)
Electrical	Voltage	AC380V
Engine	Manufacturer	Changchai(Support customization)
	model number	Changchai CZ380G three-cylinder 14.7KW
	Start mode	electric start
	Start performance	-50°C-45°C
	Fuel/Volume	Diesel/12L
	Battery capacity	12V60AH
	Fuel consumption rate	274g/kW-h
	Noise level	Rated speed ≤ 81.5dBA (1m)
Operating	Type of operation (boom/outrigger), manual traveling	Manual operation, manual travel (optional remote control operation)
	Operational	Manual operation (remote operation optional)
standard configuration	Diesel engine and electric motor (dual power)
Vehicle size	Length 3.5m Width 0.8m Height 1.85m
Self-weight (T)	2.7T
Optional	Optional torque controller/remote control/cradle/hydraulic flying jib/colors: red, green, yellow, white, grey, black
