HTSC800 Dual Power Crawler Spider Crane Hexagonal Fully Automatic

Model Number : HTSC800

Max ground lifting height : 17.5m

MOQ : 1 set

Delivery Time : 5-14 work days

Weight : 7800kg

Payment Terms : L/C,D/A,D/P,T/T

Boom length : 5m-16.8m

Brand Name : Hightop

Max working radius : 16m*0.6t

Packaging Details : Wooden case

Price : Negotiation

Boom type : Hexagonal fully automatic 5-section

Certification : CE，EPA，ISO，TUV

Standard : Diesel engine and electric motor (dual power)

Supply Ability : 100 set per month

Time for boom to fully extend : 50 ses

Place of Origin : China

Size : 5010*1600*2200(mm)

Contact Now

HTSC800 Spider Crane

The HTSC800 is a hybrid (diesel-electric) tracked spider crane with a compact and lightweight design. It moves on rubber tracks, making it ideal for working in confined spaces. This crane is widely used in lifting operations where large cranes cannot access the site, such as inside factory buildings, for installing building curtain walls, in steel structure projects, in basements, and on narrow construction sites.

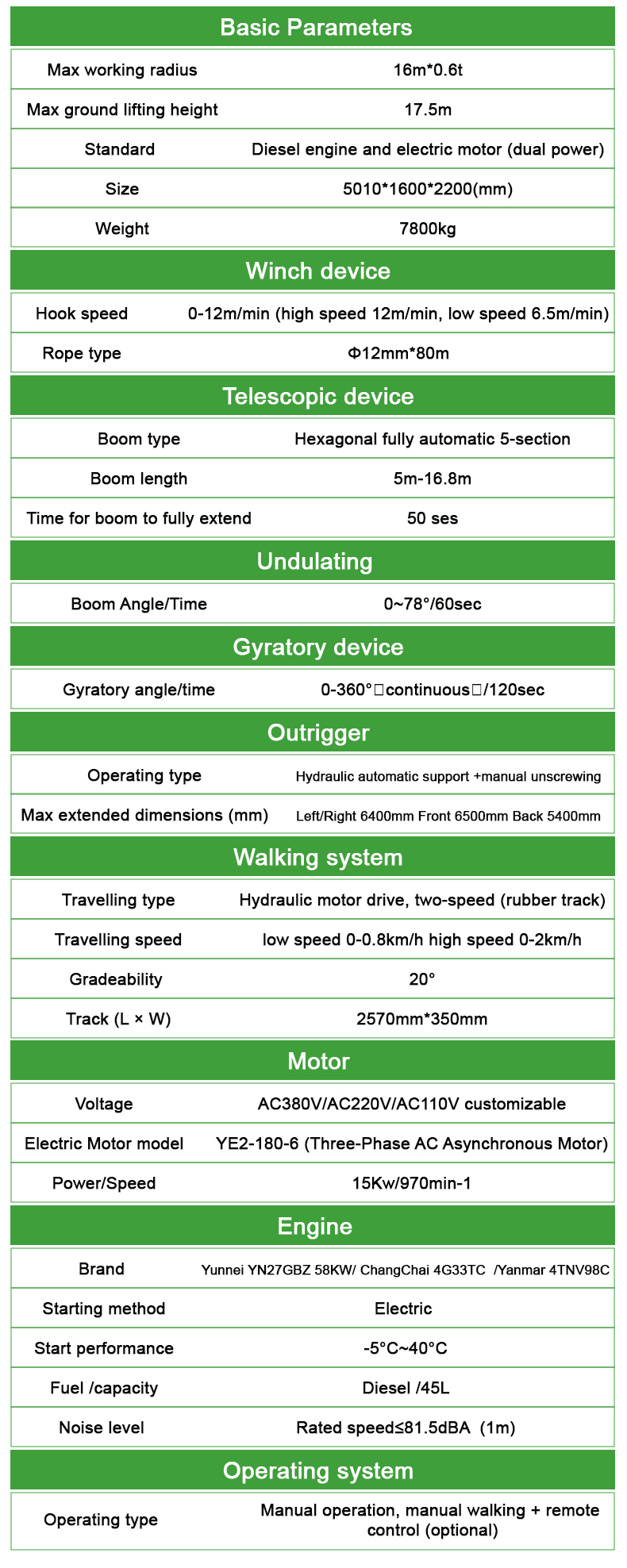

Basic Parameters

Max working radius	16m*0.6t
Max ground lifting height	17.5m
Standard	Diesel engine and electric motor (dual power)
Size	501016002200(mm)
Weight	7800kg

Winch Device

Hook speed	0-12m/min (high speed 12m/min, low speed 6.5m/min)
Rope type	Φ12mm*80m

Telescopic Device

Boom type	Hexagonal fully automatic 5-section
Boom length	5m-16.8m
Time for boom to fully extend	50 sec

Undulating

Boom Angle/Time

0~78°/60sec

Gyratory Device

Gyratory angle/time

0-360° continuous/120sec

Outrigger

Operating type	Hydraulic automatic support + manual unscrewing

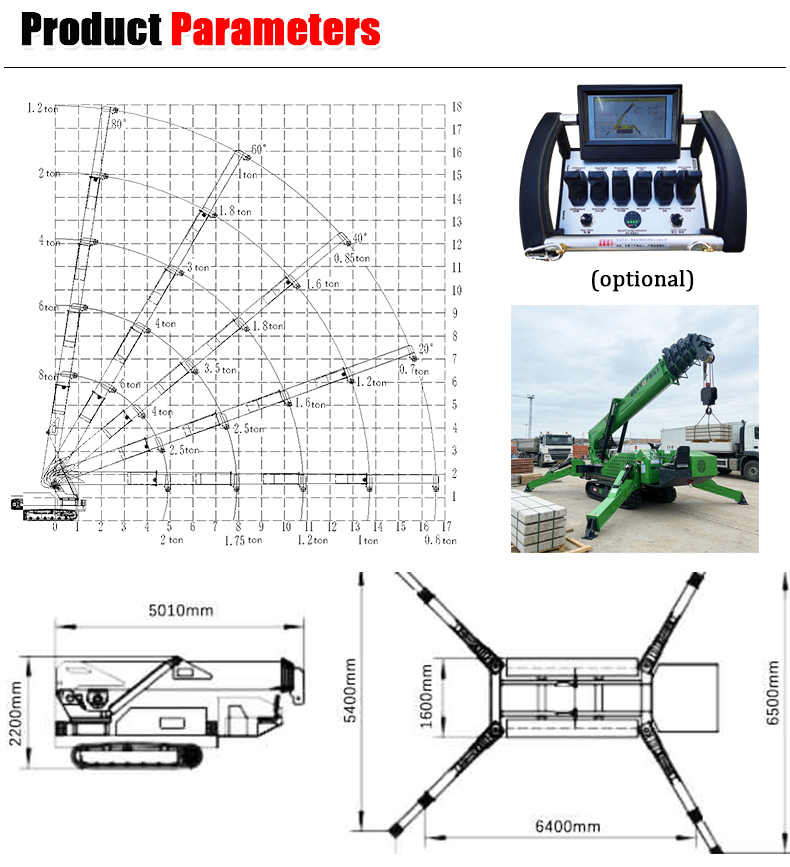

Max extended dimensions (mm)	Left/Right 6400mm Front 6500mm Back 5400mm

Walking System

Travelling type	Hydraulic motor drive, two-speed (rubber track)
Travelling speed	low speed 0-0.8km/h high speed 0-2km/h
Gradeability	20°
Track (L * W)	2570mm*350mm

Motor

Voltage	AC380V/AC220V/AC110V customizable
Electric Motor model	YE2-180-6 (Three-Phase AC Asynchronous Motor)
Power/Speed	15Kw/970min-1

Engine

Brand	Yunnei YN27GBZ 58KW/ ChangChai 4G33TC /Yanmar 4TNV98C
Starting method	Electric
Start performance	-5°C~40°C
Fuel / capacity	Diesel / 45L
Noise level	Rated speed ≤81.5dBA (1m)

Operating System

Operating type

Manual operation, manual walking + remote control (optional)

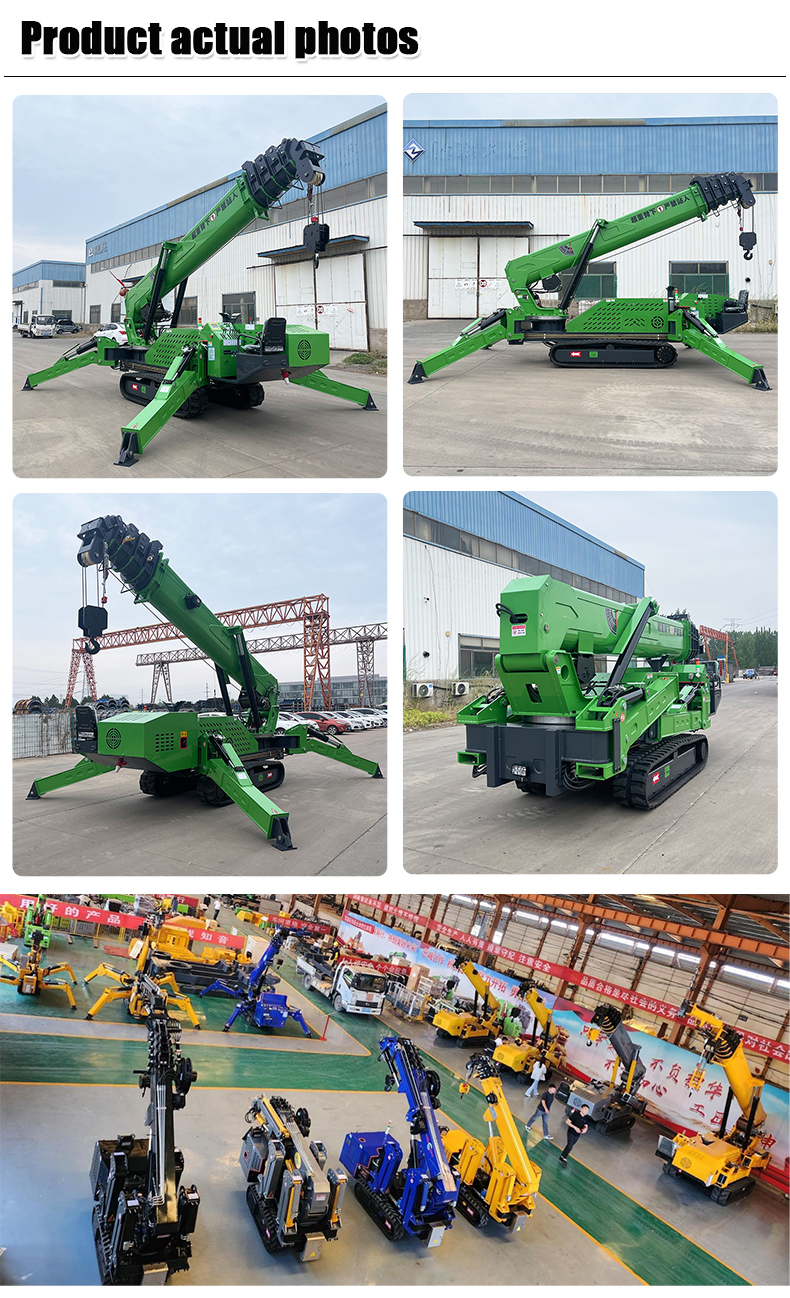

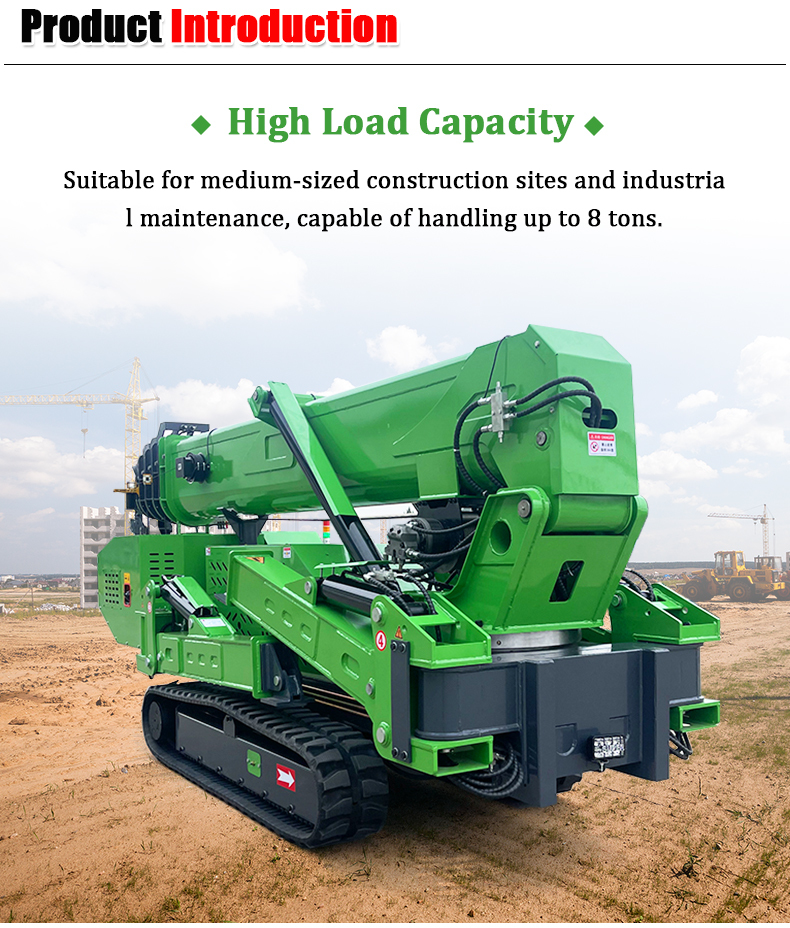

Product Images
